PS-75 Folding arm

The folding arm PS-75-S is useful for many types of assembly work operations. Designed for tools and equipment up to 10 kg in weight and a maximum torque of 75 Nm.

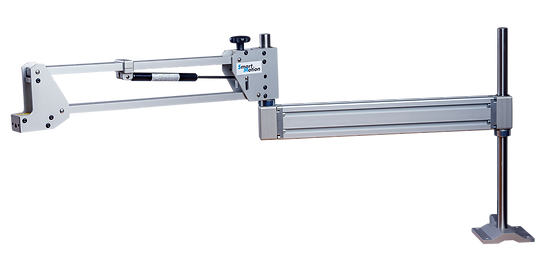

PS-75-1000 + TST-0510-75 Folding arm SMART MOTION #1

Work horizontal, vertical, fixed or swiveling.

Max 75Nm

Up to 10kg / 22lbs

Large selection of tool holders & accessories.

Specification

Article number


PS-75-1000-0102
PS-75-1000-0204
PS-75-1000-0405
PS-75-1000-0506
PS-75-1000-0608
PS-75-1000-0810
PS-75-1200-0102
PS-75-1200-0204
PS-75-1200-0405
PS-75-1200-0506
PS-75-1200-0608
PS-75-1200-0810




Weight capacity

(kg (lbs))
1-2 (2,2-4,4)
2-4 (4,4-8,8)
4-5 (8,8-11)
5-6 (11-13,2)

6-8 (13,2-17,6)

8-1 (17,6-22)

1-2 (2,2-4,4)
2-4 (4,4-8,8)
4-5 (8,8-11)
5-6 (11-13,2)

6-8 (13,2-17,6)

8-1 (17,6-22)



Torque

(Nm)
75

75

75

75

75

75

75

75

75

75

75

75



Max Range

ca (mm)

1000

1000

1000

1000

1000

1000

1200

1200

1200

1200

1200

1200



Min Range

ca (mm)

300

300

300

300

300

300

400

400

400

400

400

400



Height

(mm)

-

-

-

-

-

-

-

-

-

-

-

-

Accessories
ATH-4050-75 Adjustable vertical holder - Smart Motion Sweden AB
Dimensional drawing ATH-4050-75 - Adjustable vertical tool holder - Smart Motion Sweden AB
VTH-F-060 Fixed vertical holder - Smart Motion Sweden AB
Dimensional drawing VTH-F-060 - Fixed vertical tool holder - Smart Motion Sweden AB
VTH-S-060 Swiveling vertical holder - Smart Motion Sweden AB
Dimensional drawing VTH-S-060 - Swiveling vertical tool holder - Smart Motion Sweden AB

Adjustable vertical holder
Weight 0,4 kg Torque ≤ 50 Nm

​

Art no: ATH-4050-75 (Ø=40-50 mm)

Art no: ATH-5060-75 (Ø=50-60 mm)

Fixed vertical holder
Weight 0,7 kg Torque ≤ 150 Nm

​

Art no: VTH-F-060 (Ø=60 mm)*

*Sleeve can be ordered in any inner diameter.

Swiveling vertical holder
Weight 1,5 kg Torque ≤ 150 Nm

​

Art no: VTH-S-060 (Ø=60 mm)*

*Sleeve can be ordered in any inner diameter.

HTH-4050-75 Adjustable horizontal holder - Smart Motion Sweden AB

Adjustable horizontal holder
Weight 1,2 kg Torque ≤ 50 Nm

​​

​

Art no: HTH-4050-75 (Ø=40-50 mm)

Art no: HTH-5060-75 (Ø=50-60 mm)

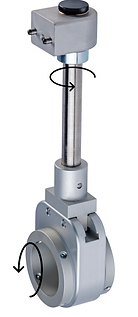

HTH-S-060 - Rotatable horizontal holder, Swiveling tool - Smart Motion Sweden AB

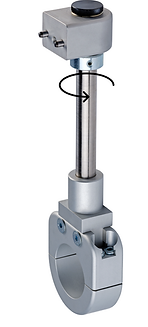

HTH-F-060 Rotatable horizontal holder, Fixed tool - Smart Motion Sweden AB

Rotatable horizontal holder

Fixed tool
Weight 1,6 kg Torque ≤ 75 Nm



Art no: HTH-F-060*

*Sleeve can be ordered in any inner diameter.

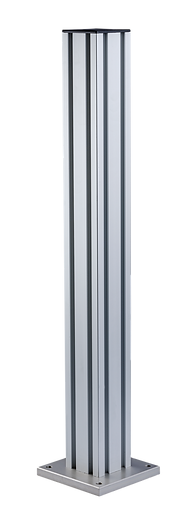

BST-080X080X0800 Pillar

Rotatable horisontal holder

Swiveling tool
Weight 2,4 kg Torque ≤ 75 Nm



Art no: HTH-S-060*

*Sleeve can be ordered in any inner diameter.

Dimensional drawing BST-080x080x0750 - Pillar - Smart Motion Sweden AB
Dimensional Drawing HTH-4050-75 Adjustable horizontal holder
Dimensional drawing HTH-F-060 Rotatable horizontal holder, Fixed tool
Dimensional drawing HTH-S-060 Rotatable horisontal holder, Swiveling tool
TEX-75 Extension tube - Smart Motion Sweden AB
Dimensional drawing TEX-75 Extension tube

Pillar

Can also be delivered in any length.​

​

Art no: BST-080x080x0800 h=800 mm

Art no: BST-080x080x1300 h=1300 mm

TST-0510-75 Table stand - Smart Motion Sweden AB
Dimensional drawing TST-0510-75 - Table stand - Smart Motion Sweden AB
WBR-75-E Wall bracket - Smart Motion Sweden AB
Dimensional drawing WBR-75-E - Wall bracket Max 50Nm - Smart Motion Sweden AB
WBR-75-D Double Wall bracket - Smart Motion Sweden AB
Dimensional drawing WBR-75-D - Wall bracket Max 150Nm - Smart Motion Sweden AB

Extension tube

Weight 0,5kg



Art no: TEX-75

Table stand
Torque ≤ 50 Nm



Art no: TST-0510-75

Wall bracket
Torque ≤ 50 Nm



Art no: WBR-75-E

Wall bracket (double)
Torque ≤ 150 Nm



Art no: WBR-75-D
