Parallel arm PS-150-S

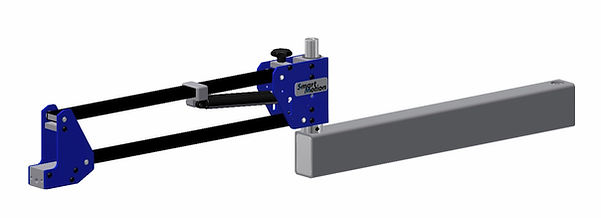

The folding arm PS-150-S is our largest and most powerful folding arm designed to be mounted on tables or smaller spaces and is therefore very useful for many types of assembly work. Designed for tools and machines with a weight up to 10 kg and a maximum torque of 150 Nm.

Work horizontal, vertical, fixed or swiveling

Max 150Nm

Up to 10kg / 22lbs

Large selection of tool holders & accessories

Specification

Article number

PS-150-1000-0102
PS-150-1000-0203
PS-150-1000-0304
PS-150-1000-0405
PS-150-1000-0506
PS-150-1000-0608
PS-150-1000-0810
PS-150-1200-0102
PS-150-1200-0203
PS-150-1200-0304
PS-150-1200-0405
PS-150-1200-0506
PS-150-1200-0608
PS-150-1200-0810




Weight capacity

(kg (lbs))
1-2 (2,2-4,4)
2-3 (4,4-6,6)
3-4 (6,6-8,8)
4-5 (8,8-11)
5-6 (11-13,2)

6-8 (13,2-17,6)

8-1 (17,6-22)

1-2 (2,2-4,4)
2-3 (4,4-6,6)
3-4 (6,6-8,8)
4-5 (8,8-11)
5-6 (11-13,2)

6-8 (13,2-17,6)

8-1 (17,6-22)



Torque

(Nm)

150

150

150

150

150

150

150

150

150

150

150

150

150
150



STEP/ CAD


Download



Max Range

ca (mm)

1000

1000

1000

1000

1000

1000

1000

1200

1200

1200

1200

1200

1200

1200



Min Range

ca (mm)

300

300

300

300

300

300

300

400

400

400

400

400

400

400



Height

(mm)

-

-

-

-

-

-

-

-

-

-

-

-

-

-
